Foundation Bolts

M12 – M56 | Up to 2000mm

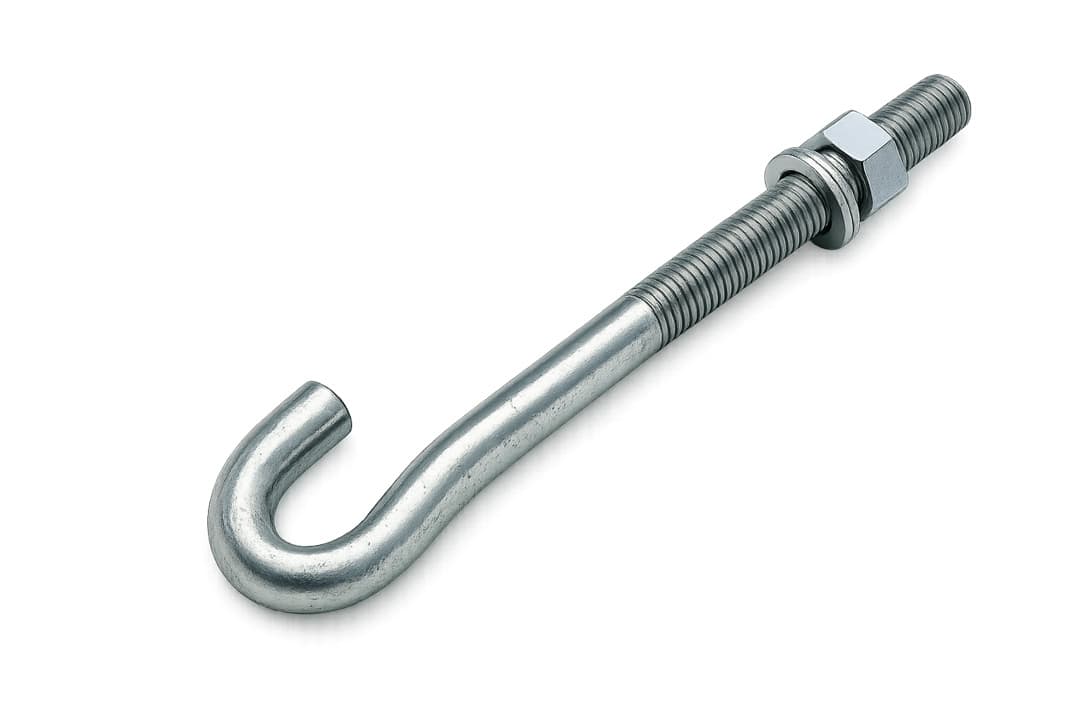

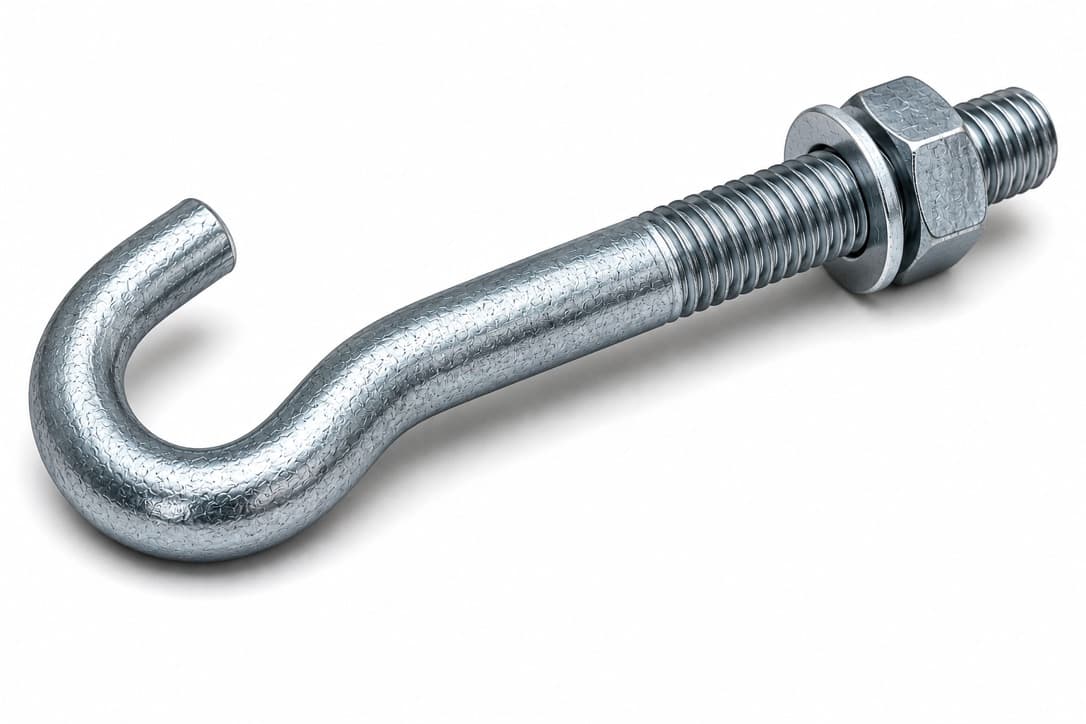

J Type Foundation Bolt

J Type Foundation Bolts are steel anchor bolts bent into a J-hook shape. The hook end is cast into wet concrete and resists pull-out as the concrete cures. Available in mild steel, high tensile, GI, and HDG finishes. Widely used in structural steel column anchoring, machinery mounting, pole foundations, and civil engineering structures.

M12 – M56 | Up to 2000mm

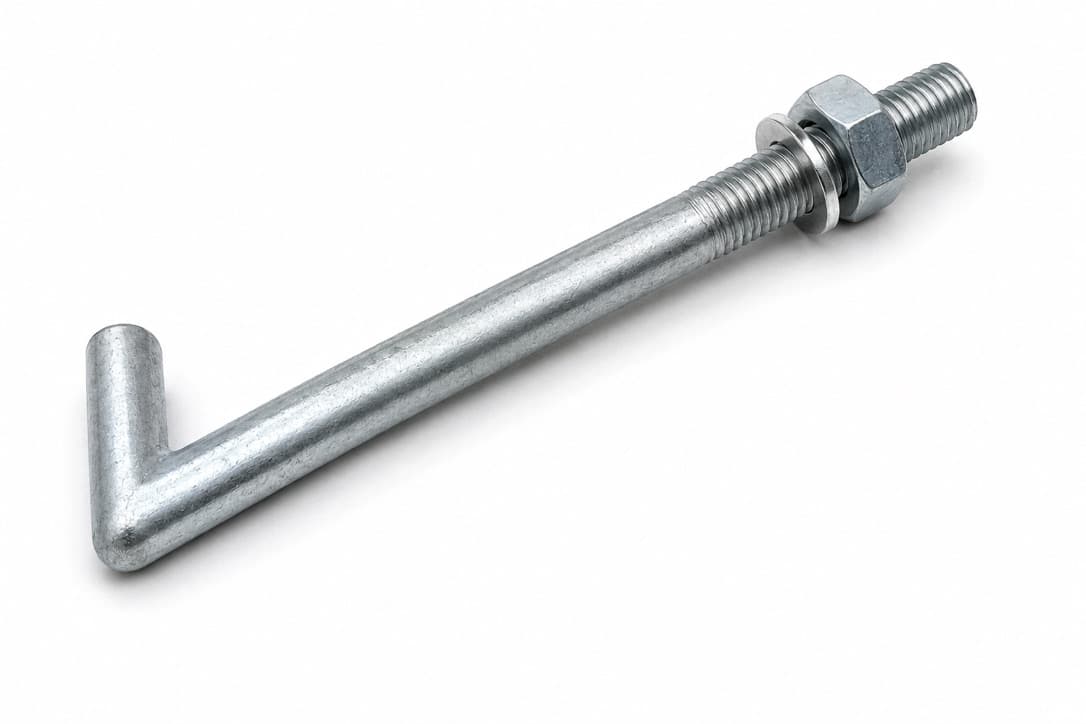

L Type Foundation Bolt

L Type Foundation Bolts feature a precise 90-degree right-angle bend forming an L-shape. The bent end cast into concrete provides superior resistance to both tensile and shear forces. Preferred over J-type for heavier structural applications. Available in GI, HDG, and black finishes across grades 4.6 to 10.9.

M16 – M64 | Up to 1500mm

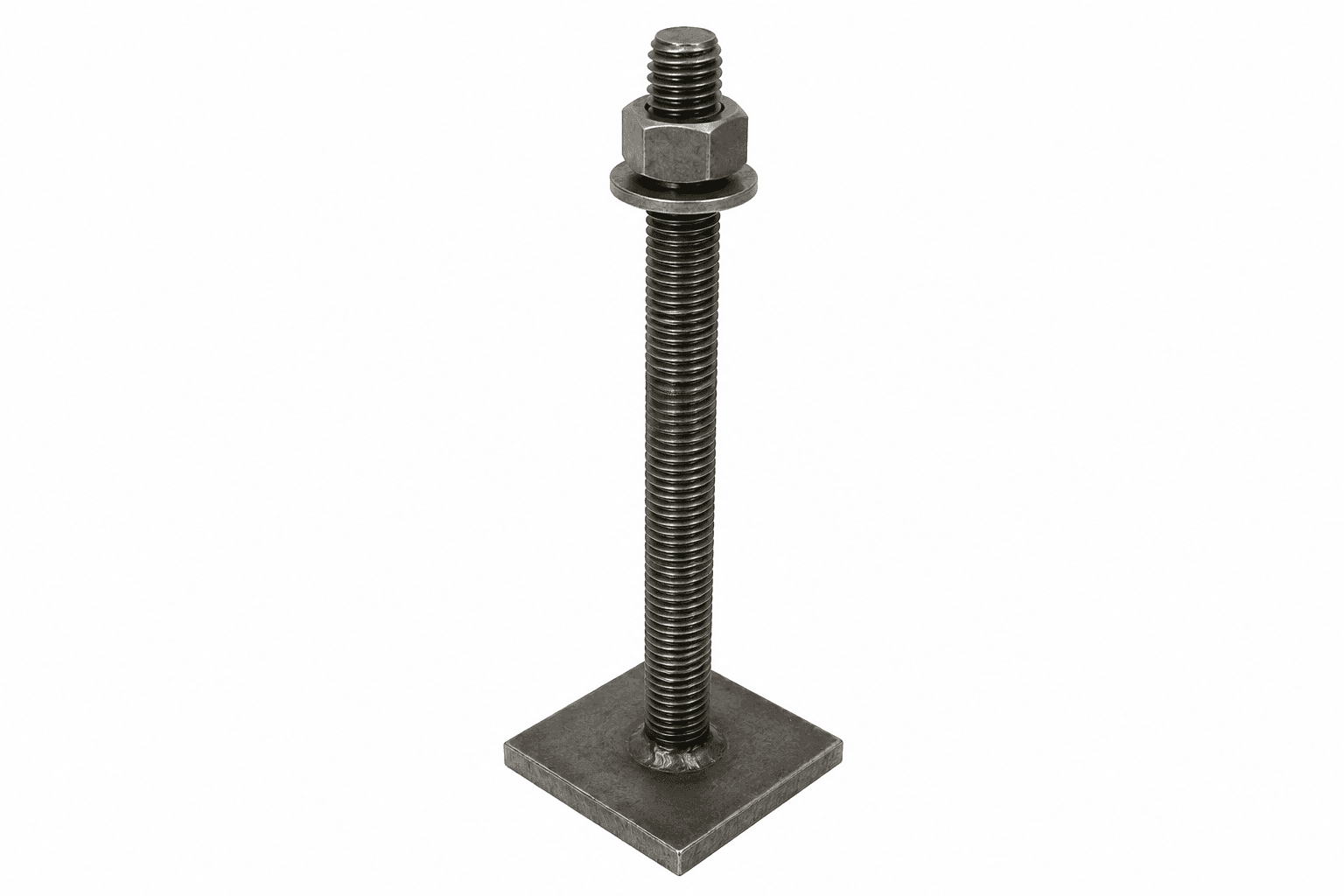

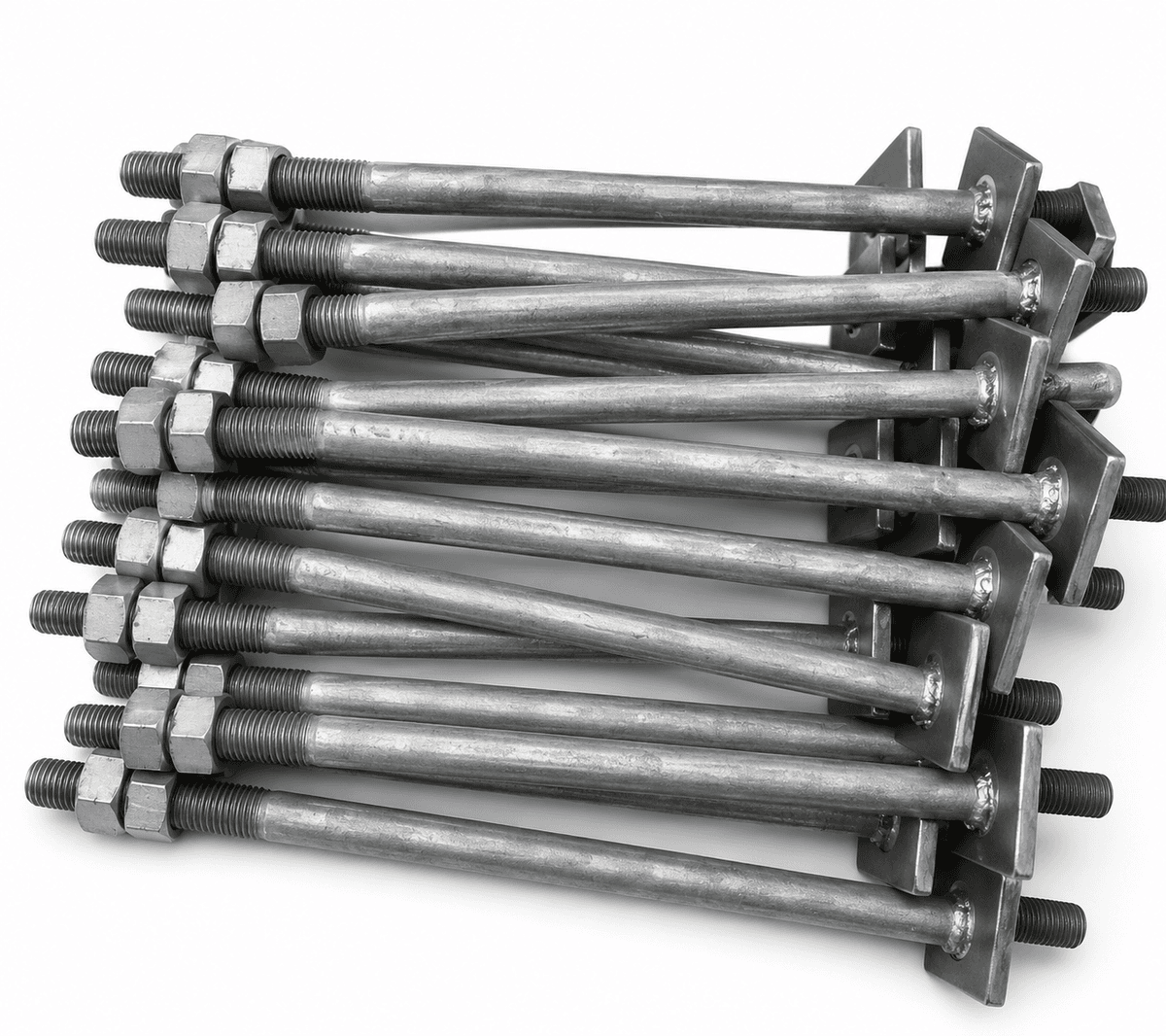

Plate Type Foundation Bolt

Plate Type Foundation Bolts feature an integrated welded steel base plate at the embedded end. The plate distributes compressive and tensile loads over a wide area of concrete, preventing crushing and stress concentration. Used for heavy machinery installations, turbine foundations, press machine bases, and any application requiring maximum load distribution.

M20 – M56 | Up to 1200mm

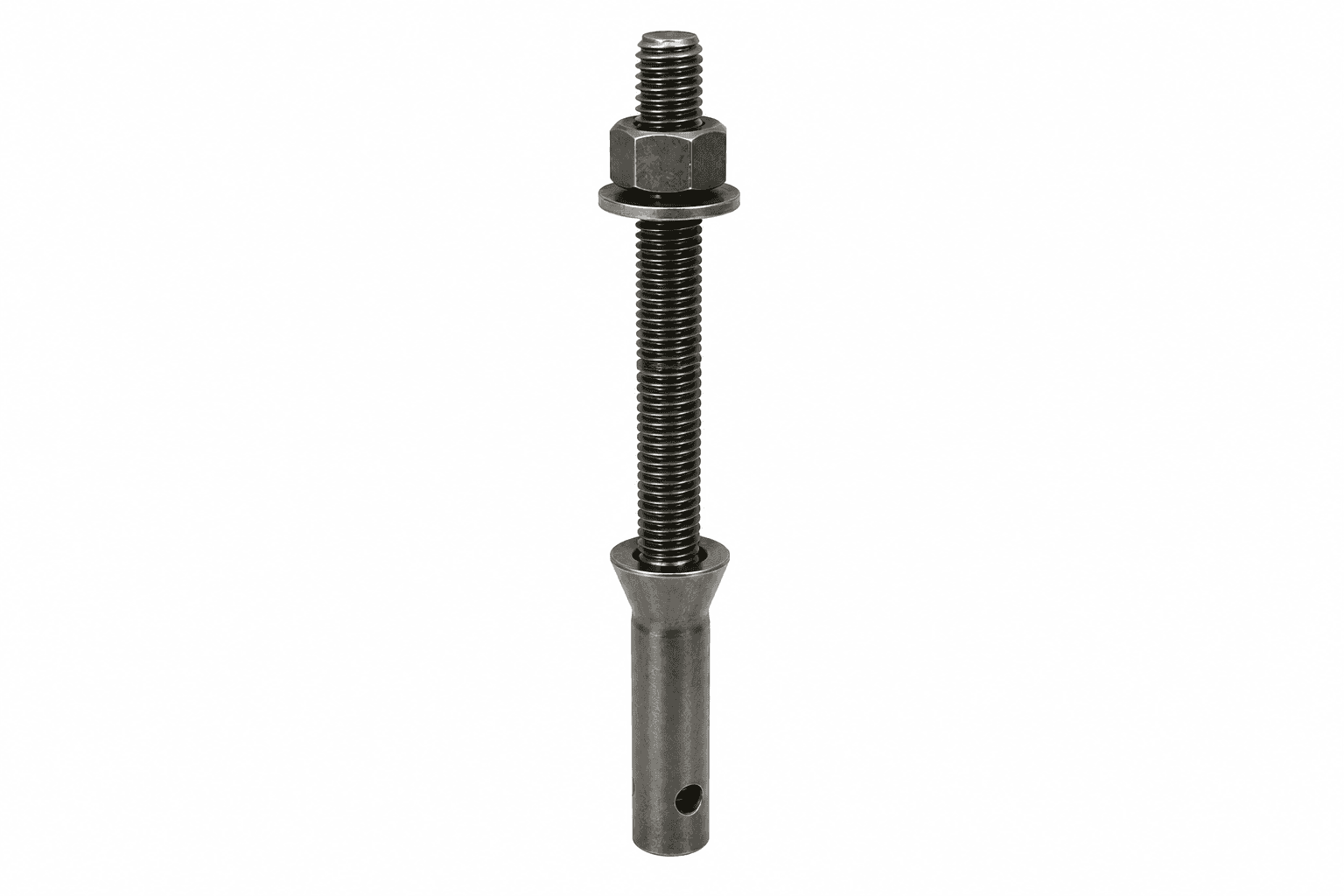

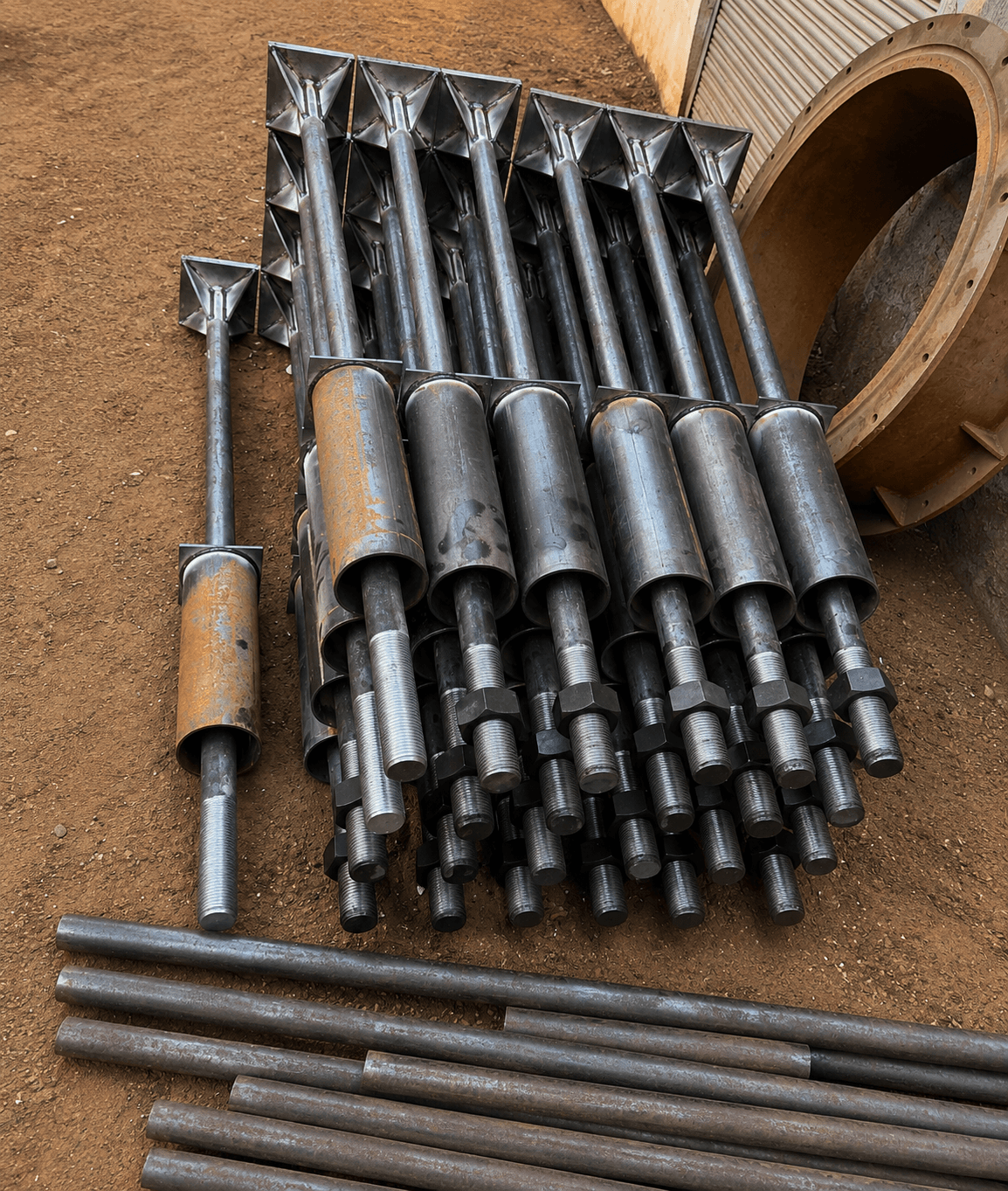

Funnel / Sleeve Type Foundation Bolt

Funnel or Sleeve Type Foundation Bolts feature a conical or tapered head that creates a mechanical lock in concrete. The funnel design allows minor positional adjustment before the concrete fully sets. Widely used in tunnel construction, metro rail projects, underground infrastructure, and deep foundation work where standard bolt types are insufficient.

M20 – M64 | Up to 1500mm

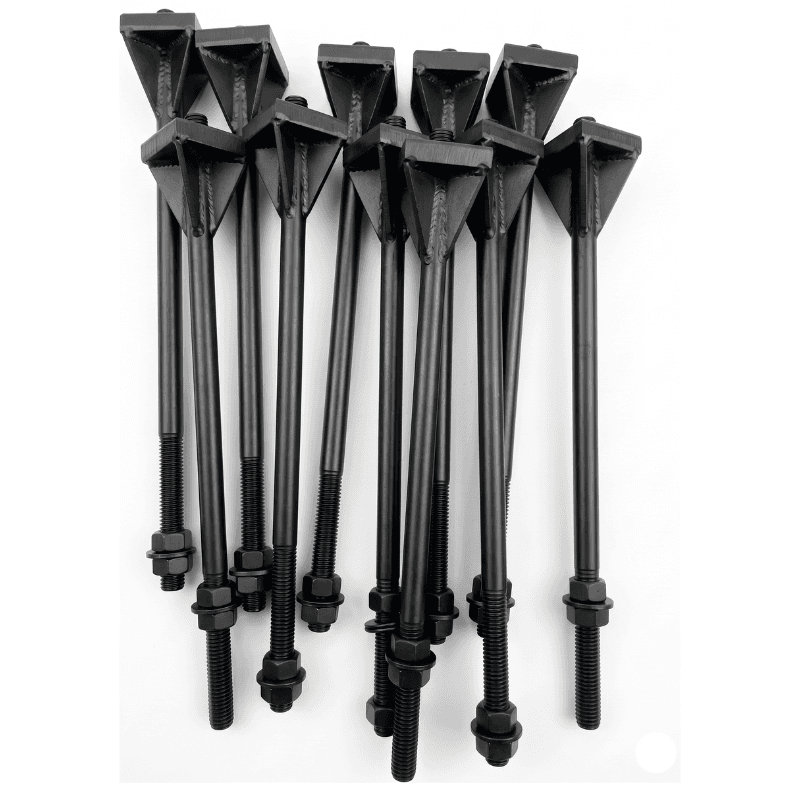

Star Type Foundation Bolt

Star Type Foundation Bolts feature a star-shaped or cross-welded anchor plate at the embedded end, providing multi-directional load distribution across a wide concrete area. The radial arm design dramatically increases pull-out resistance compared to standard plate types. Engineered for high-vibration and heavy dynamic load environments such as compressor foundations, crusher bases, and large industrial machinery.

M12 – M72 | Custom Lengths

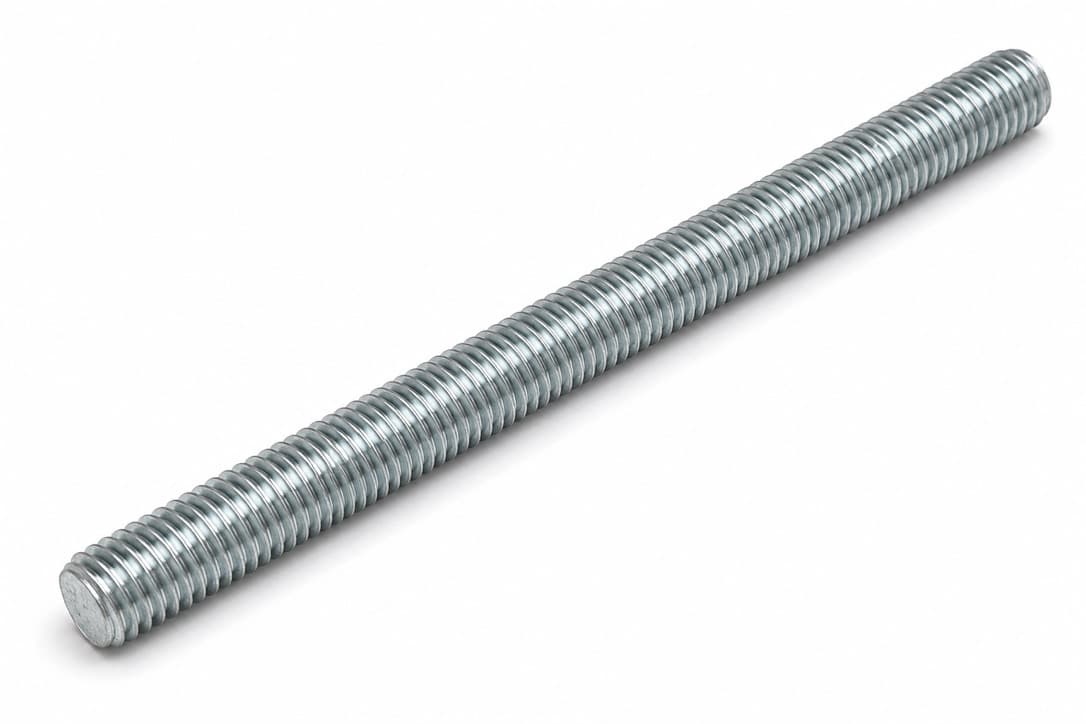

Rod Type / Connection Bolt

Rod Type or Connection Bolts are straight threaded rods used for deep concrete embedment or end-to-end structural connections. Double-sided threading allows adjustment from both ends. Available in single and double-end thread configurations. Used in large column bases, wind turbine foundations, transmission tower anchors, and adjustable base plate systems.
