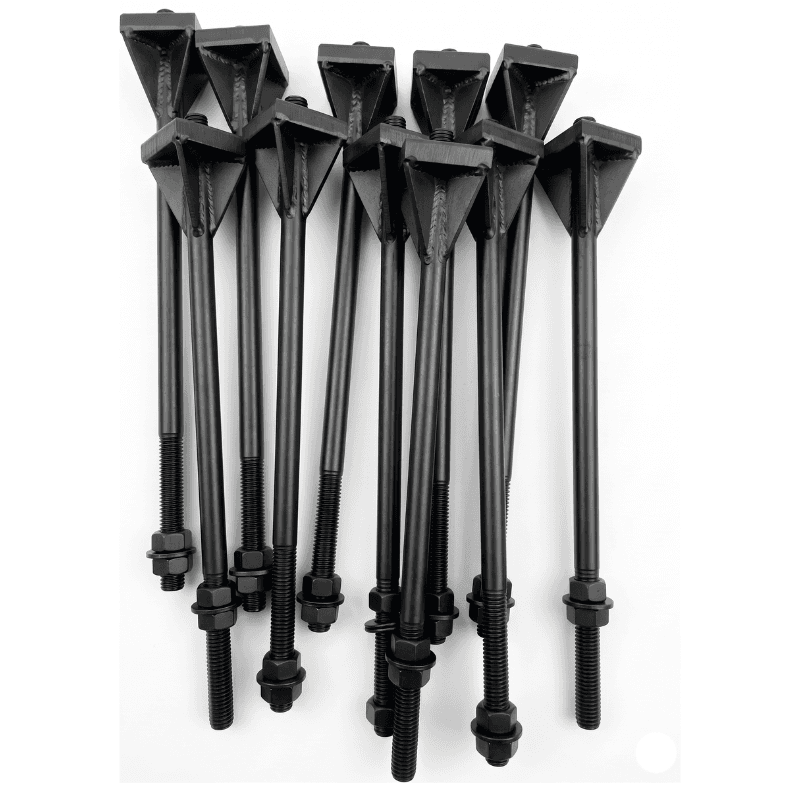

Star Type Foundation Bolt
M20 – M64 | Up to 1500mm
Star Type Foundation Bolts feature a star-shaped or cross-welded anchor plate at the embedded end, providing multi-directional load distribution across a wide concrete area. The radial arm design dramatically increases pull-out resistance compared to standard plate types. Engineered for high-vibration and heavy dynamic load environments such as compressor foundations, crusher bases, and large industrial machinery.
Key Features & Benefits
- Star/cross-welded base provides superior multi-directional pull-out resistance
- Radial arms distribute load evenly across a wide concrete area
- Prevents bolt rotation during nut tightening
- Ideal for high-vibration and dynamic load applications
- Custom arm lengths and configurations available
- HDG finish for outdoor and corrosive environments
- Full tensile and proof load testing available on request
- Supplied with matching hex nuts and washers on request
01
Multi-point star anchor plate prevents twisting and rotating during concrete curing.
02
Ideal for pre-cast structural blocks and structural steel framing.
03
High tensile capability designed for seismic and wind load resistance.
