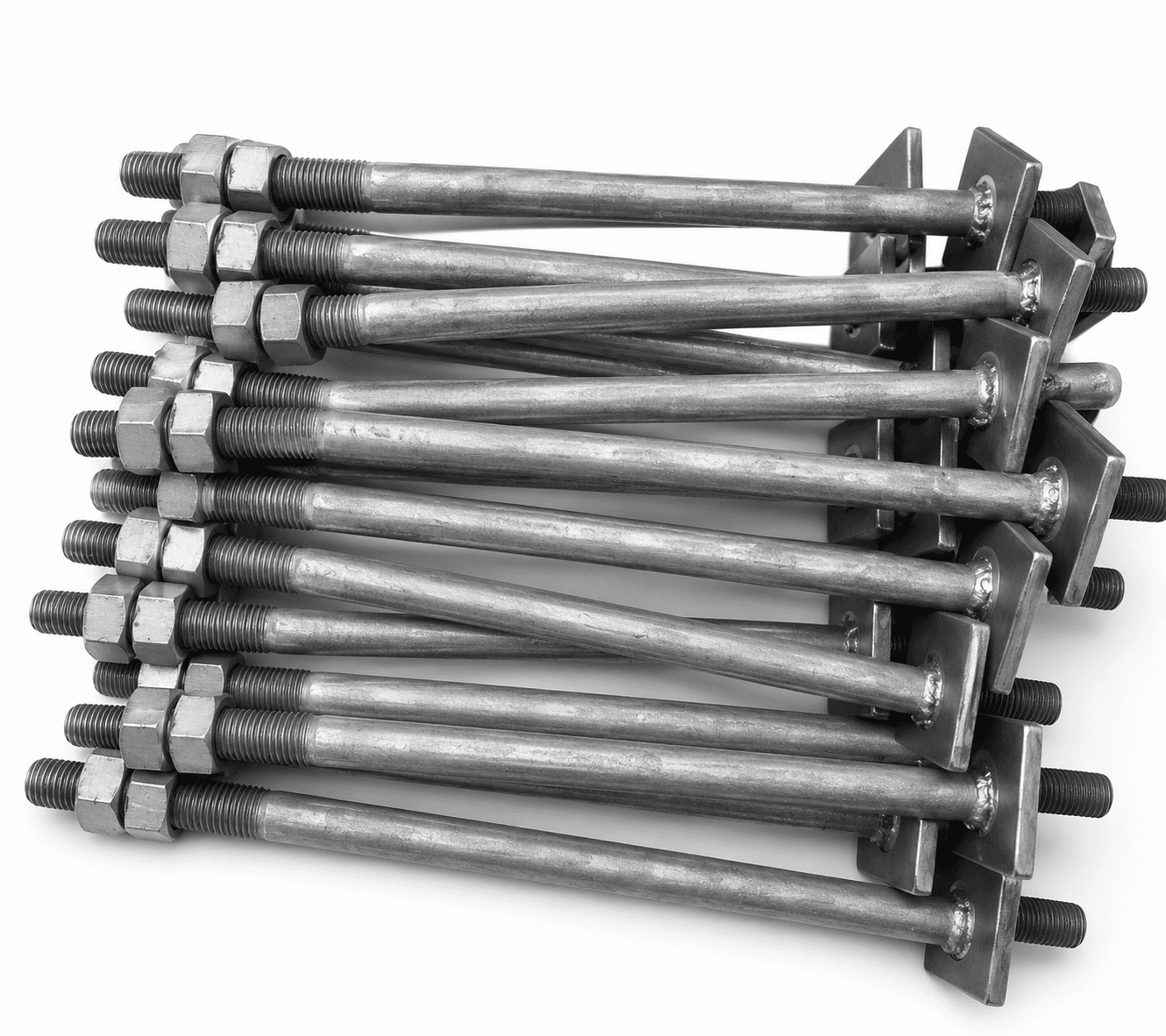

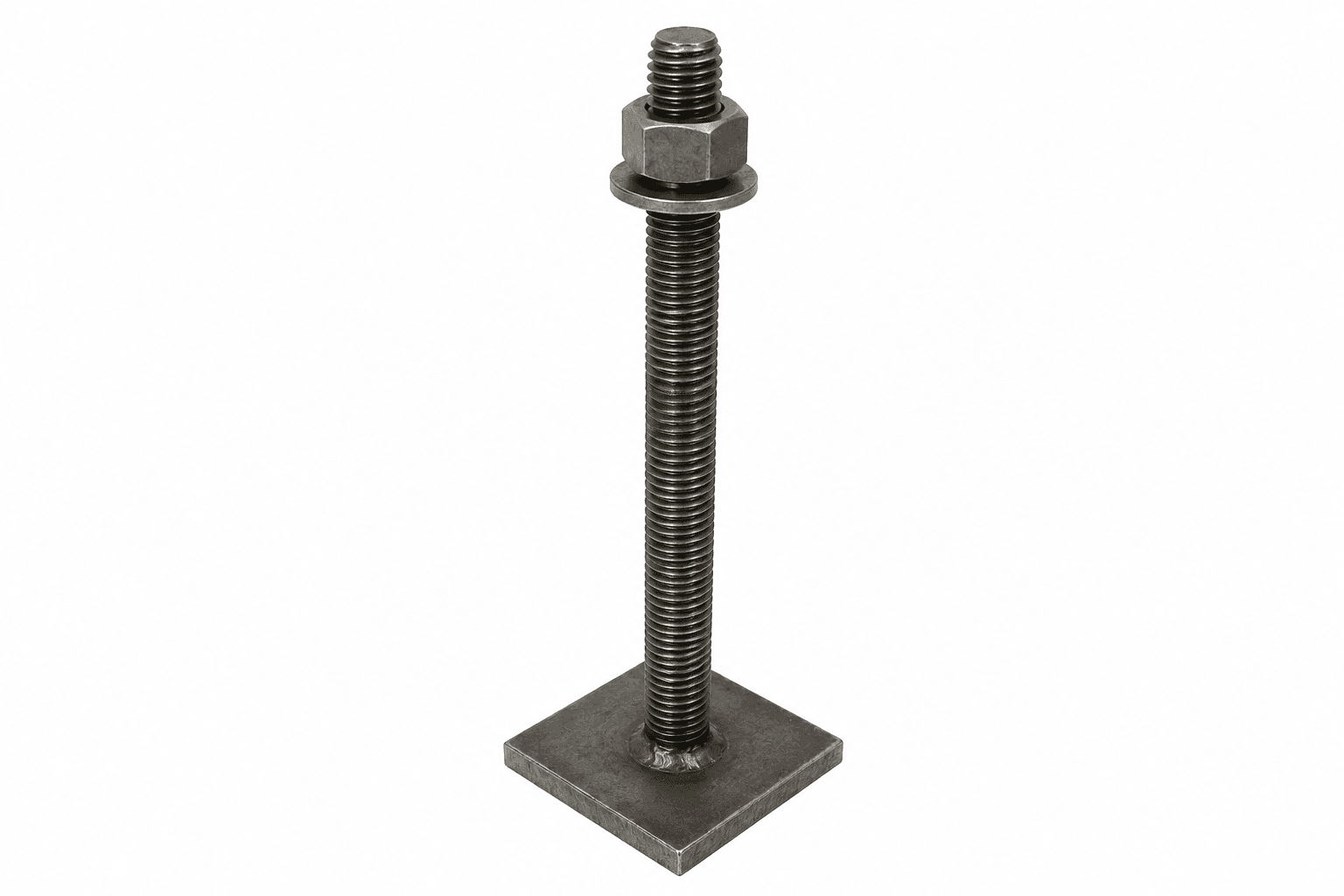

Plate Type Foundation Bolt
M16 – M64 | Up to 1500mm
Plate Type Foundation Bolts feature an integrated welded steel base plate at the embedded end. The plate distributes compressive and tensile loads over a wide area of concrete, preventing crushing and stress concentration. Used for heavy machinery installations, turbine foundations, press machine bases, and any application requiring maximum load distribution.
Key Features & Benefits
- Welded base plate distributes load over maximum concrete area
- Prevents concrete crushing under high compressive loads
- No risk of bolt rotation during nut tightening
- Custom plate sizes for specific load requirements
- HDG finish for outdoor and corrosive environments
- Suitable for heavy press, turbine, and generator mounting
- Full tensile and proof load testing available on request
- Supplied with matching nuts and washers
01
Welded square or round washer plates secure the bottom anchor point.
02
Distributes high shear and tensile loads evenly through concrete foundation beds.
03
Designed specifically for industrial buildings, warehouses, and heavy machinery towers.
