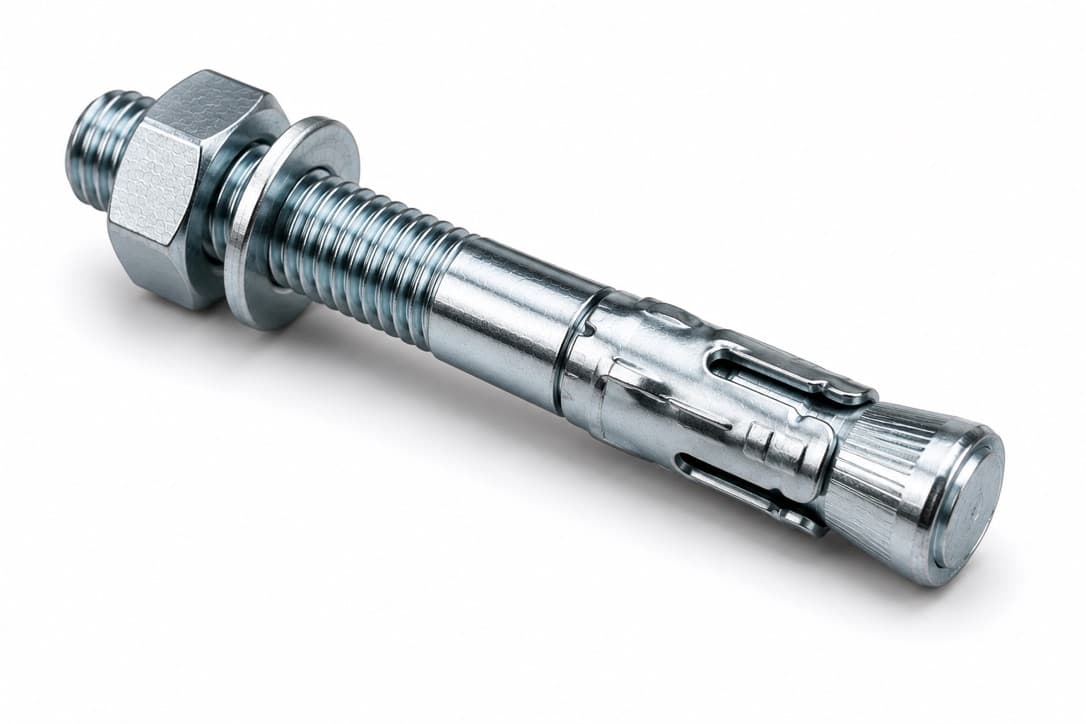

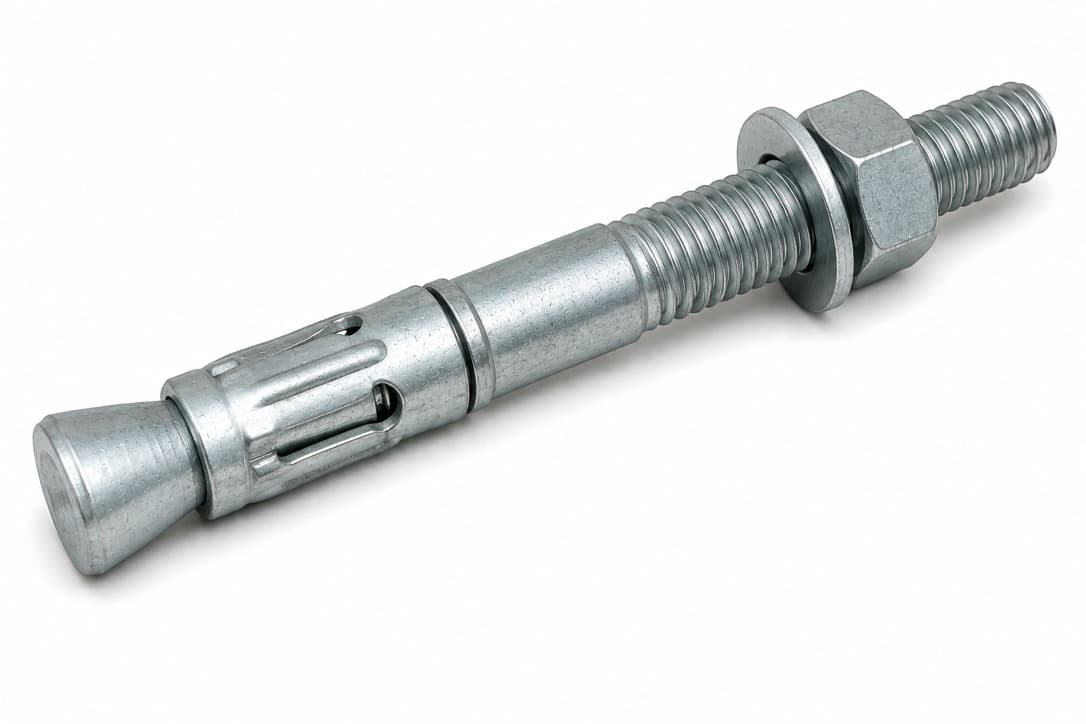

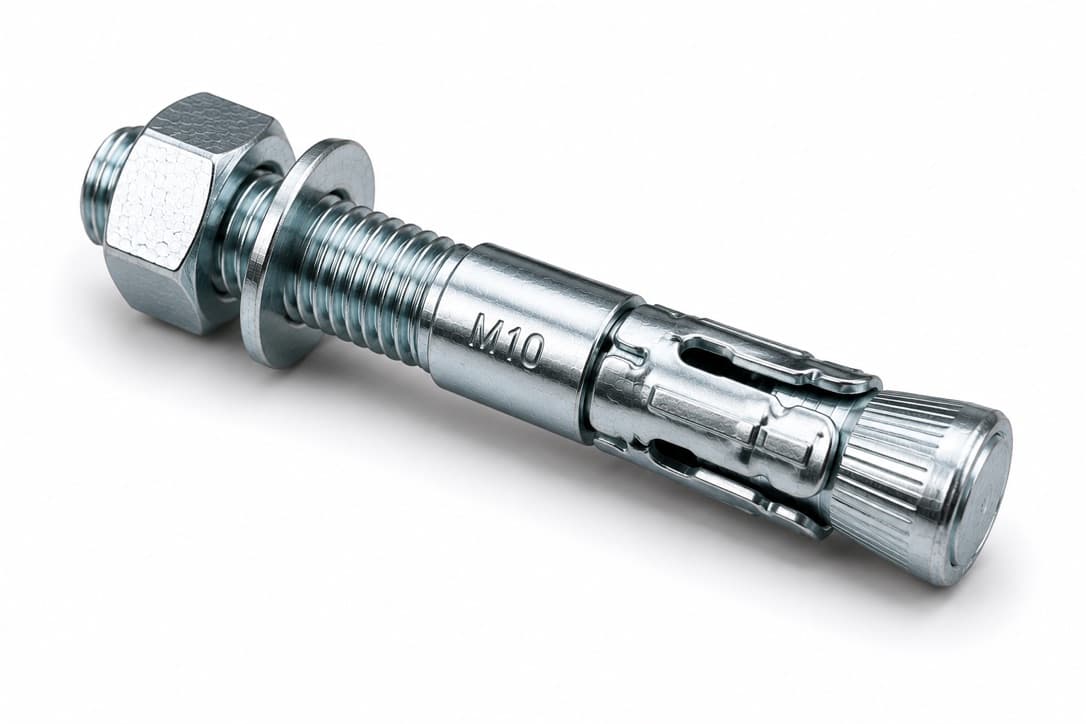

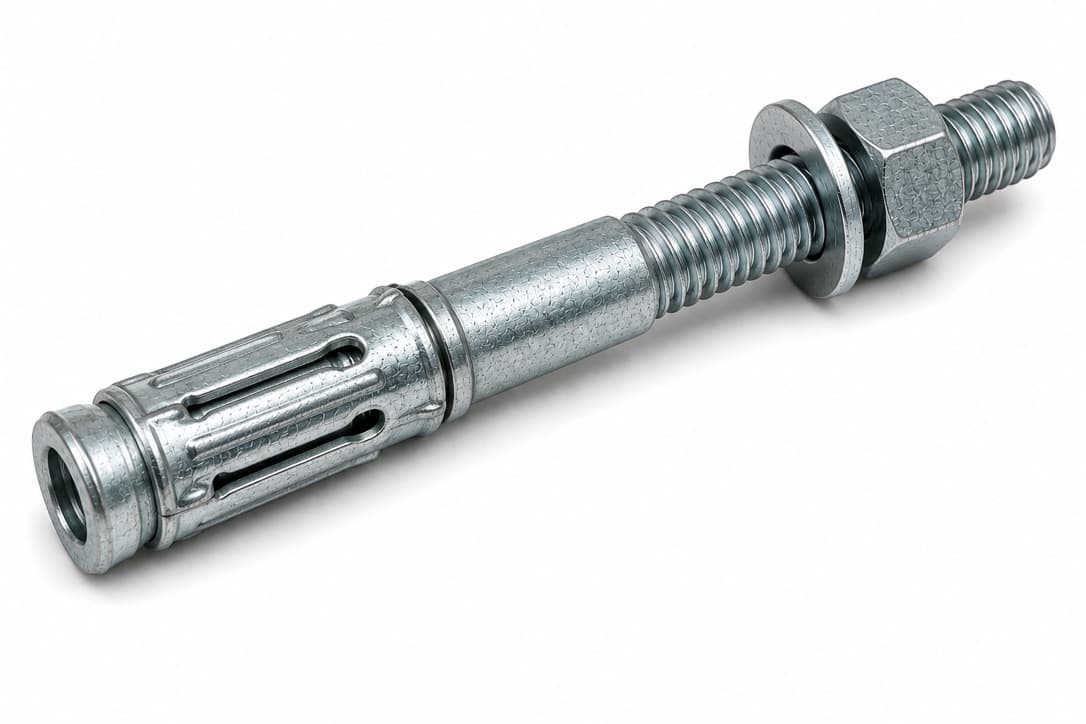

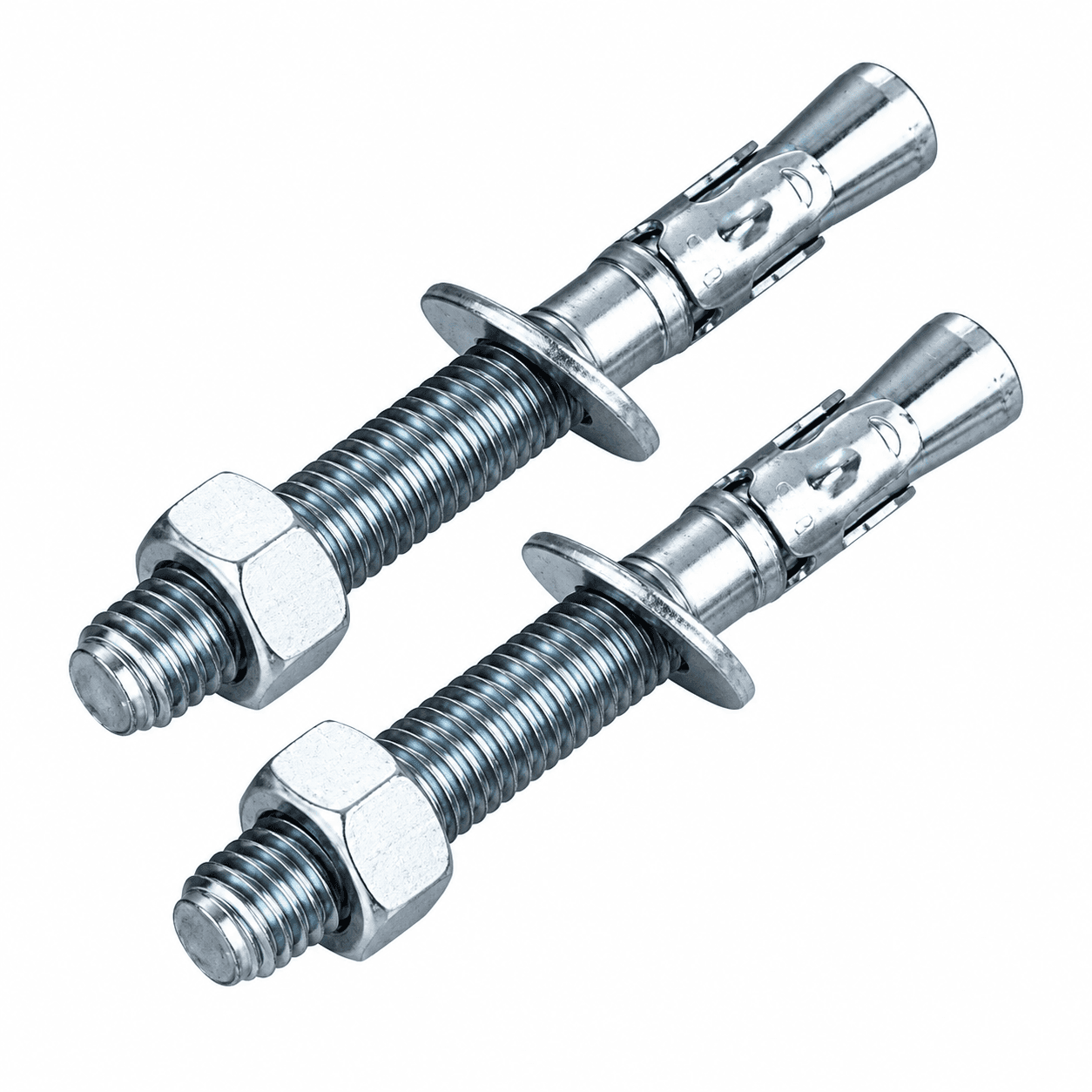

Wedge Anchor
M8 – M30 | Heavy Duty Concrete
Heavy-duty post-installed wedge anchors for high-load mechanical anchoring into solid concrete. The stainless or carbon steel wedge sleeve expands against the bore wall as the nut is tightened, providing reliable tension and shear resistance. Zinc-plated and HDG finishes. Complies with IS, ASTM F1554, and ICC-ES standards.
Key Features & Benefits
- Mechanical expansion for high pull-out resistance
- Suitable for post-installed concrete anchoring
- Carbon steel and stainless options available
- High tension and shear load capacity
- No curing time required — immediate loading
- IS and ASTM compliant
- Supplied with matching nut and washer
- Wide diameter range M8 to M30
01
Wedge clip expands against drill hole wall, generating extreme mechanical friction values.
02
Designed specifically for heavy machine foundations and building baseplates.
03
Threaded stud allows fixture adjustments even after anchor insertion.
