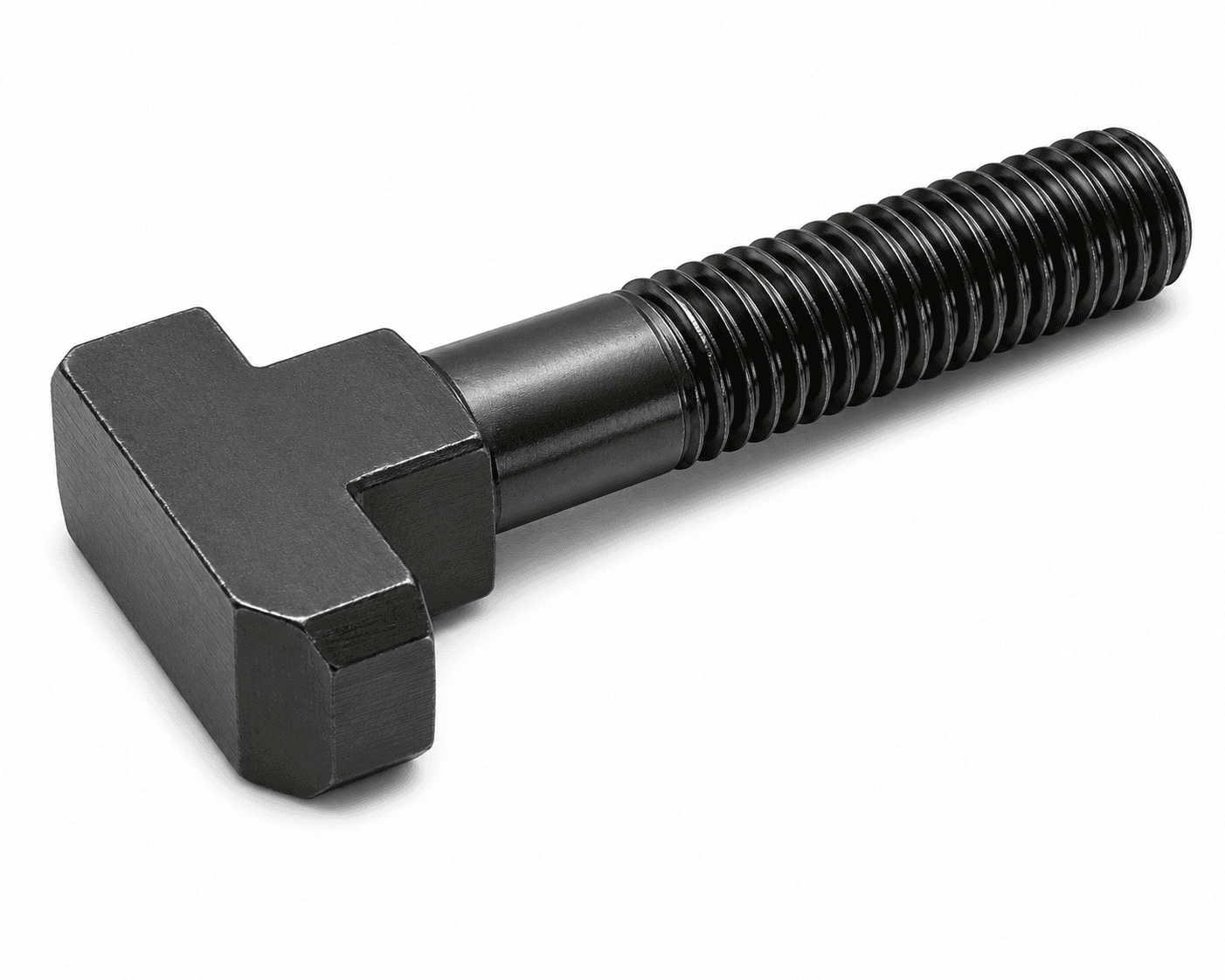

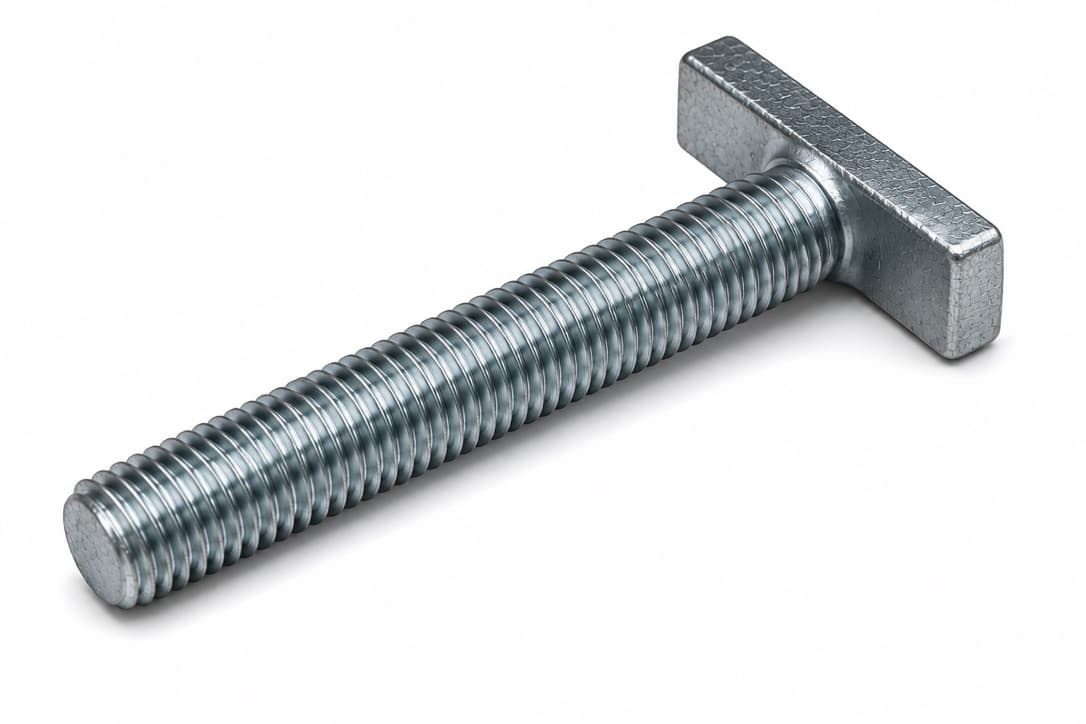

T Head Bolt
M24 – M72 | 200mm - 1500mm | Grade 4.6, 8.8, 10.9
T-shaped head bolts designed to slide into T-slots on machine tool tables, jigs, and fixtures — locking in place with a 90° rotation so no access to the bolt head is needed from above. The T-head sits flush within the slot and resists rotation during tightening. Available in grades 4.6 and 8.8 in black and zinc-plated finishes. Manufactured to DIN 787 and ISO standards for use in machine beds, CNC tables, and structural channel systems.
Key Features & Benefits
- T-head slides into slot and locks on 90° rotation
- No access required to bolt head from above during tightening
- T-head resists rotation when nut is being tightened
- Precise head dimensions machined to slot tolerance
- Available in grade 4.6 and 8.8 for varied clamping loads
- Compatible with standard DIN T-slot profiles on machine tables
- Custom T-head dimensions manufactured on request
- Bulk supply with material test certificates available
01
Slides cleanly into machine T-slots for modular jig clamping.
02
Commonly used in tooling assemblies, press clamping, and metalworking guide setups.
03
Robust rectangular head design handles extreme clamping forces.
